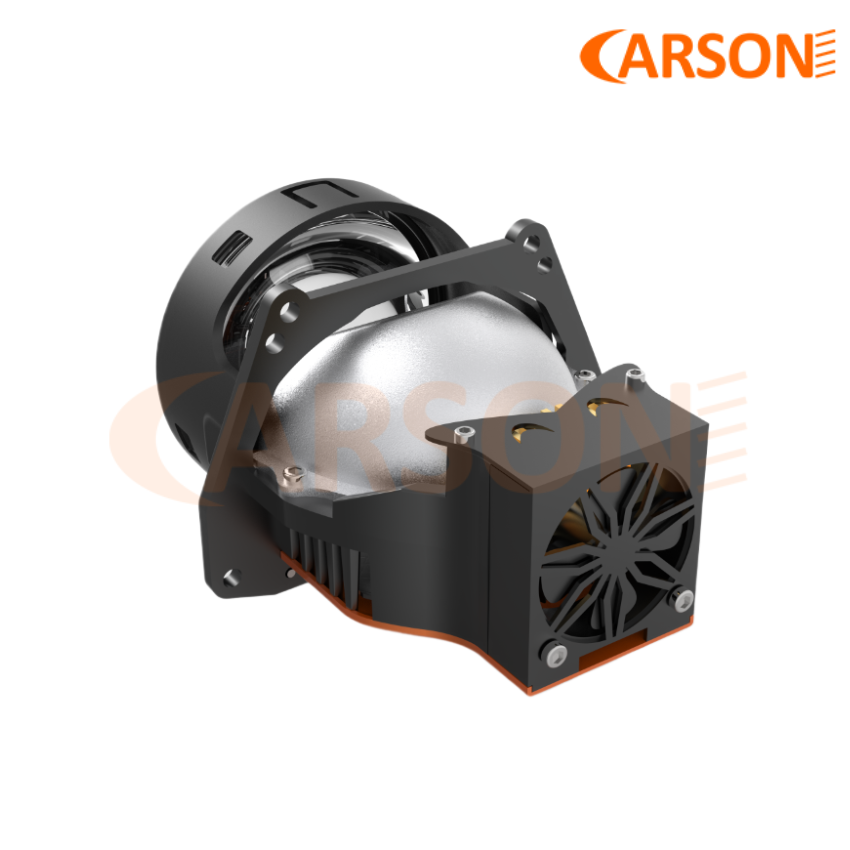

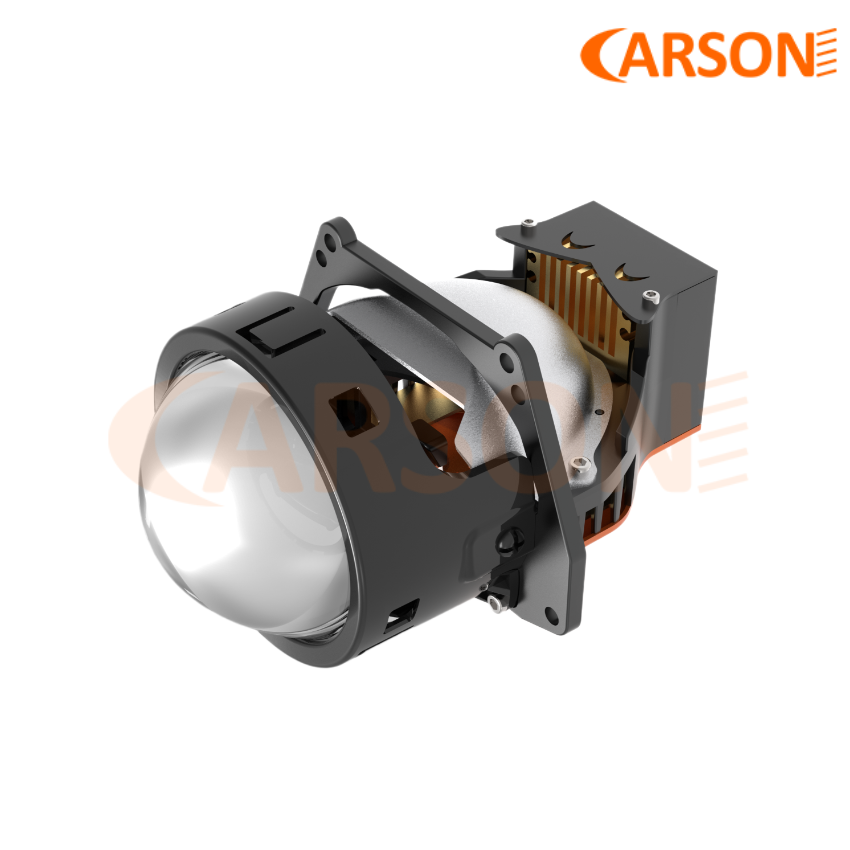

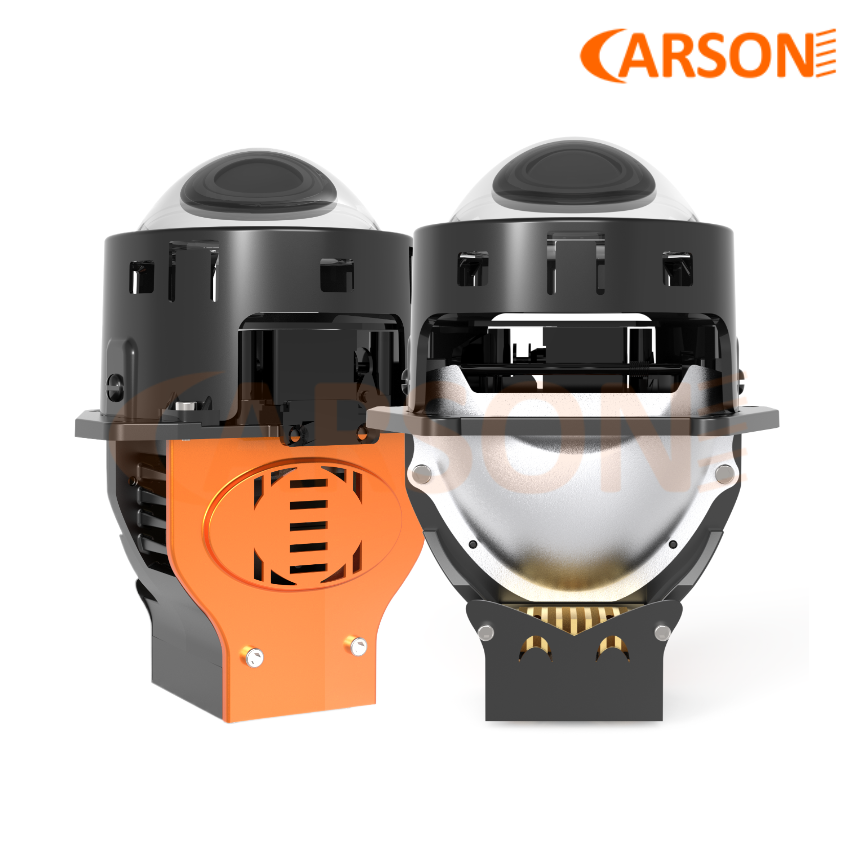

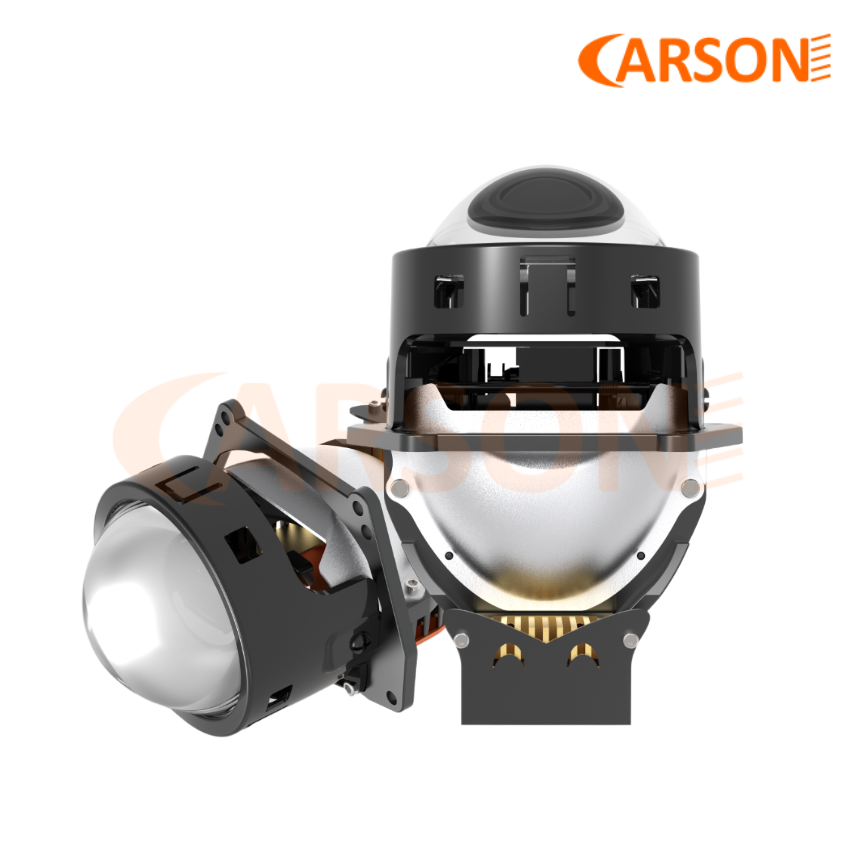

BAT-3 6+6 CSP LED Bi LED lens
Technical Specifications
QTY/CTN 10SETS/CTN
Gross Weight18KG
CTN Size43*28*52CM
Custom LOGOYes(QTY≥100Sets)
Features & Benefits
6+6 CSP LED, dual reflectors design;
Aluminum fins and double bearing ball fan，intelligent temperature control system，better heat dissipation effect;
Ultra-wide lighting pattern, illuminated area is larger, wider, and deeper;
Latest optical grade reflector, the cutting line is clear, clean, and smooth.
Available Packaging
Model No.BAT-3
LED Chips6+6 CSP LED
Power Rating60W low beam, 70W high beam
LUX4480 LUX low beam at 5 meters, 4840 LUX high beam at 5 meters
Input Voltage12V DC
C.C.T6000K
MaterialAviation Aluminum
Warranty3 Years
